BuildYourCNC
4'x8' Heavy Duty CNC Machine
4'x8' Heavy Duty CNC Machine
Regular price
$4,500.00 USD
Regular price
Sale price
$4,500.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The greenBull 4X is no longer sold as a kit or assembled.
The current 4'x8' design is the greenBull v2, available as an instant digital download: greenBull v2 4'x8' plans. We stock the electronics and mechanical parts to build it, and for existing greenBull machines. This page is kept for reference.

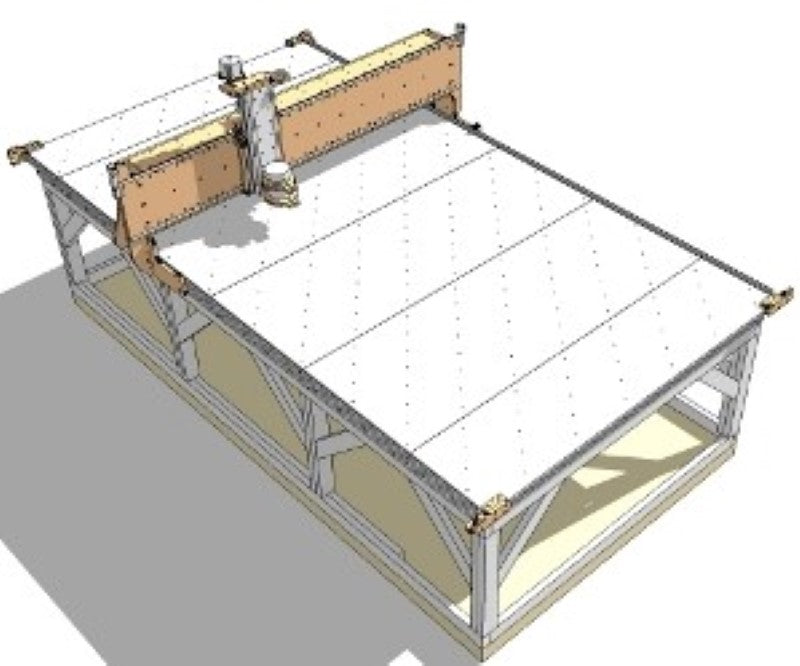

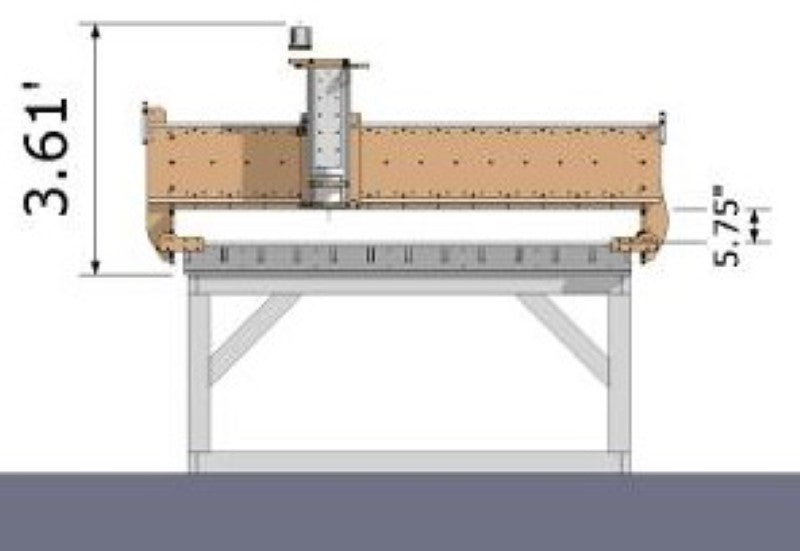

- Actual table dimension for the 4'x8' are 55.25"x123" (this will create a 1 inch overhang on both sides).
- The overall design has increased rigidity for the new routing/milling area but still maintains the aesthetics that are common across all of the machines on this site.
- To guarantee that the gantry doesn't flex at all, a series of ribs were added within the gantry box making the entire gantry very similar to a torsion box.
- The motors selected for all of the axes are NEMA 34 with 1/2" shafts (driven by 6.0 amp drivers).

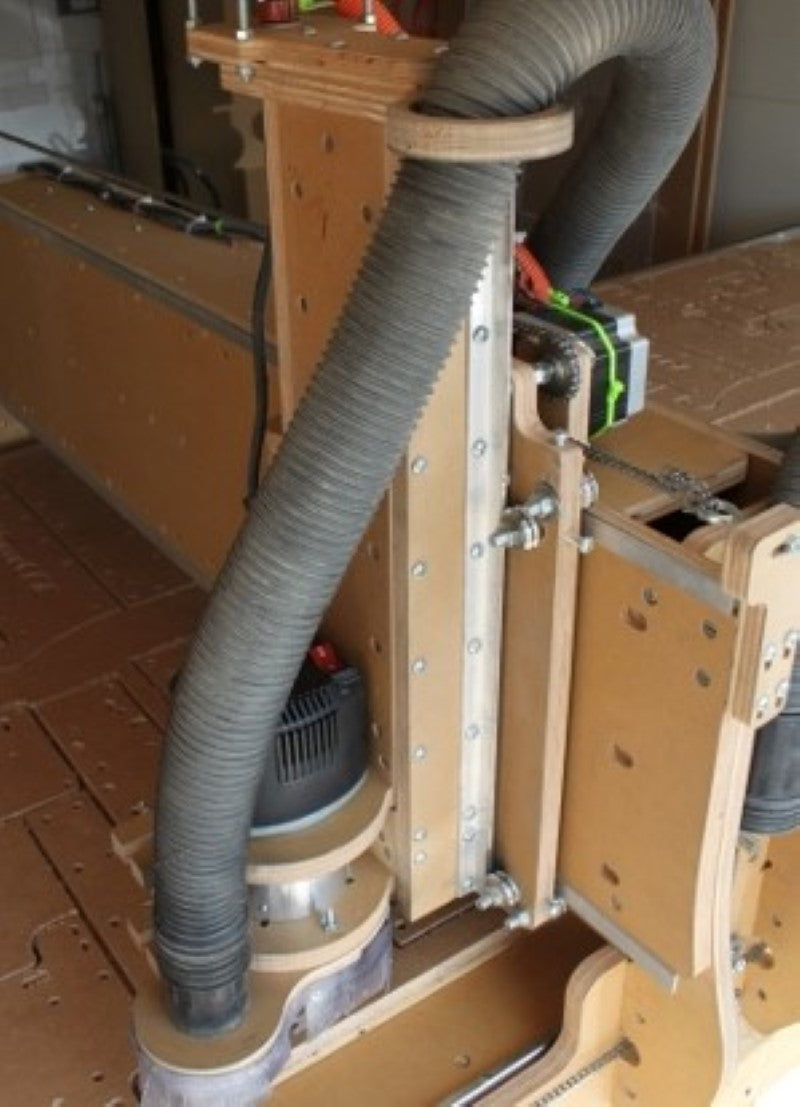

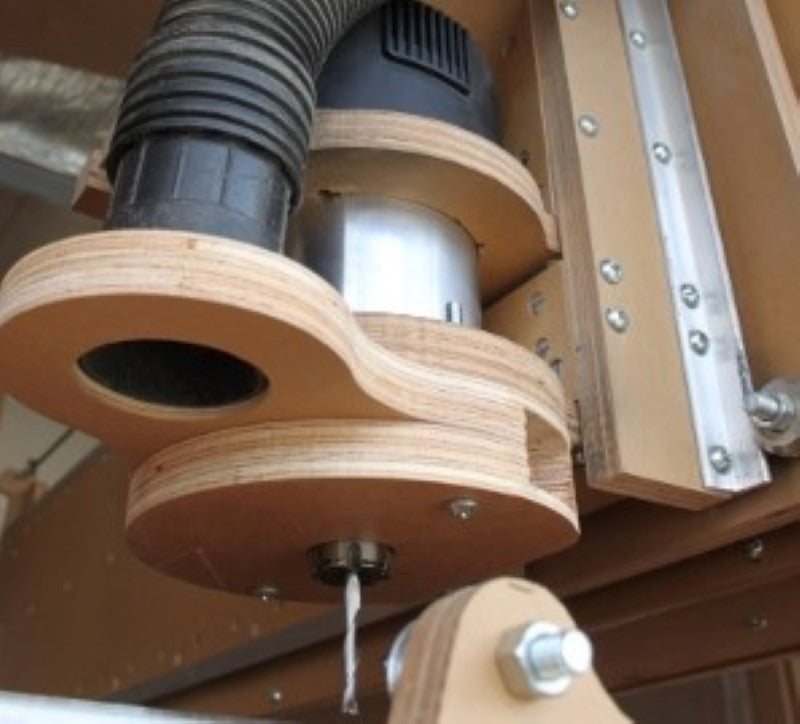

- The dust shoe is redesigned to provide better dust extraction capability.
- The 4X used a standard amount of 50 feet of motor cable, which assumes the computer is placed right next to the machine.
- The Spindle will require 12/3, 14/3, or 16/3 gauge cable for wiring from the inverter to the wall. You will also need 4 conductor wire for wiring the Spindle to the inverter as a 4th wire for ground is needed. It is important to understand the electrical requirements for wiring the Spindle, so for this reason we strongly recommend you check with a licensed electrician before attempting to wire it.
Replacement parts for the greenBull 4x8
Still running a greenBull 4x8? These are the wear parts owners replace most often:
- 1/2" Anti-Backlash Nut (2-pack)
- 1/2" Lead Screw — cut to the length your machine needs
- 1/2" Bearings
- Flexible Coupling Set — pick hubs to match your motor shaft
Upgrading the electronics? PoKeys57CNC or Ethernet SmoothStepper, with Mach3 or Mach4.
